4 Basic System Setup

4.1 STEP 1: Connect cameras

Test your cameras prior to selecting a permanent mounting location by connecting the cameras and cables to your recorder locally. Push and twist the BNC connector clockwise to secure it to the BNC port.

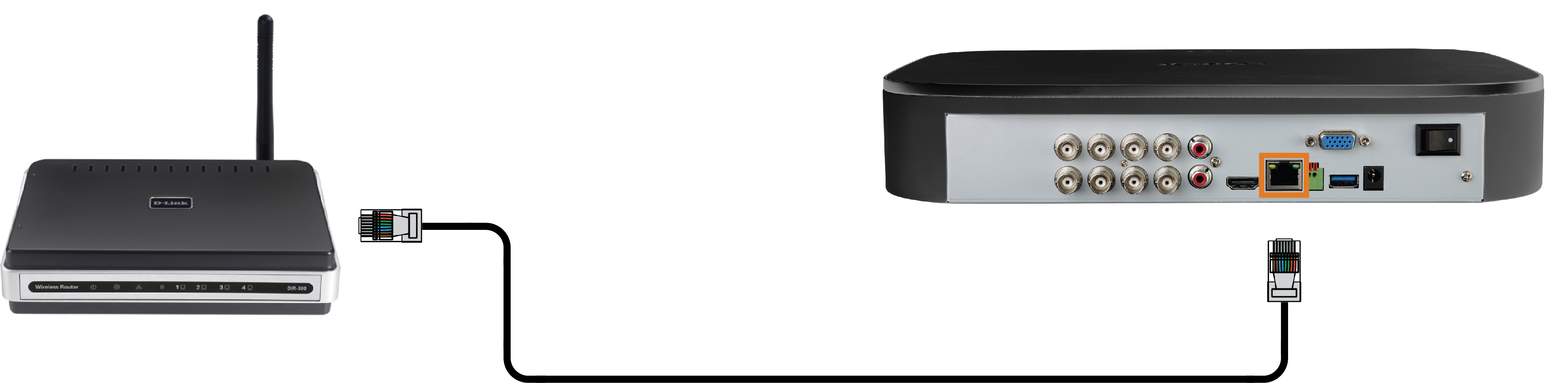

4.2 STEP 2: Connect router

Connect the recorder to your router using the included Ethernet cable.

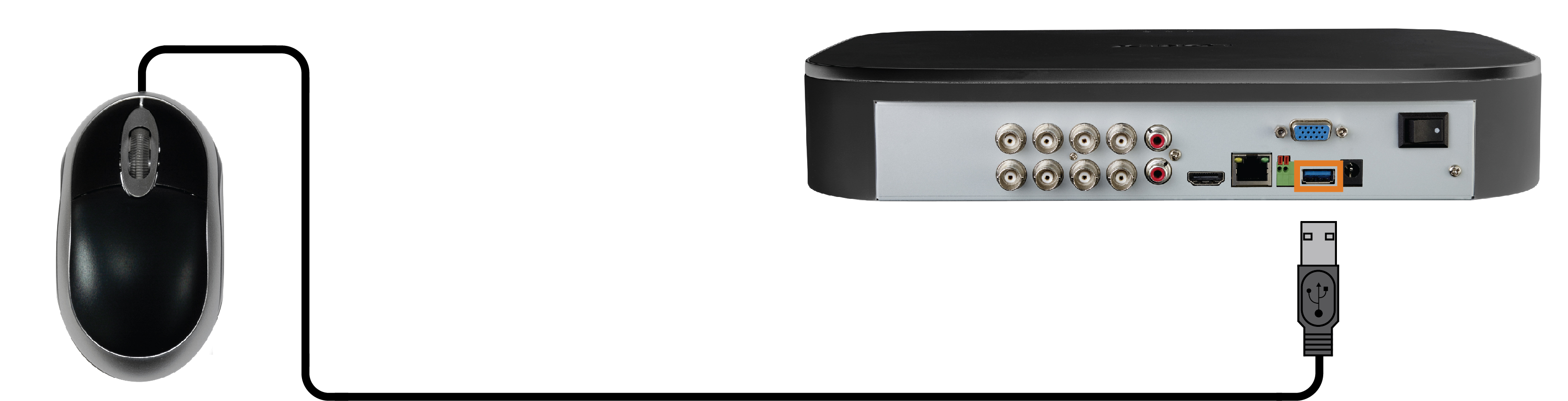

4.3 STEP 3: Connect mouse

Connect the included mouse to a USB port on the recorder.

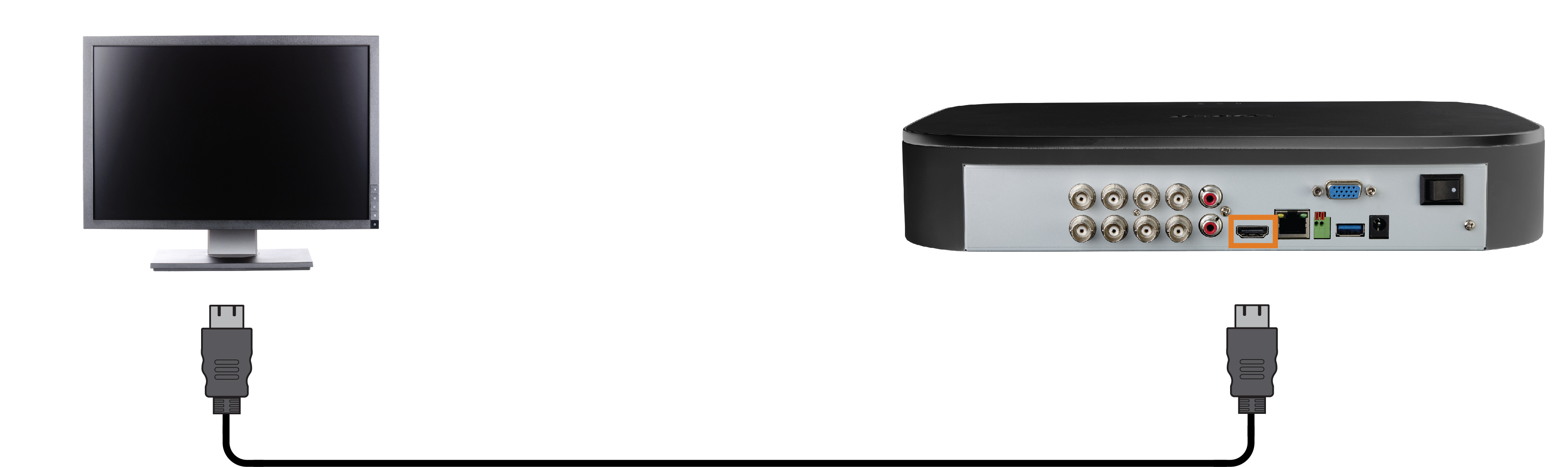

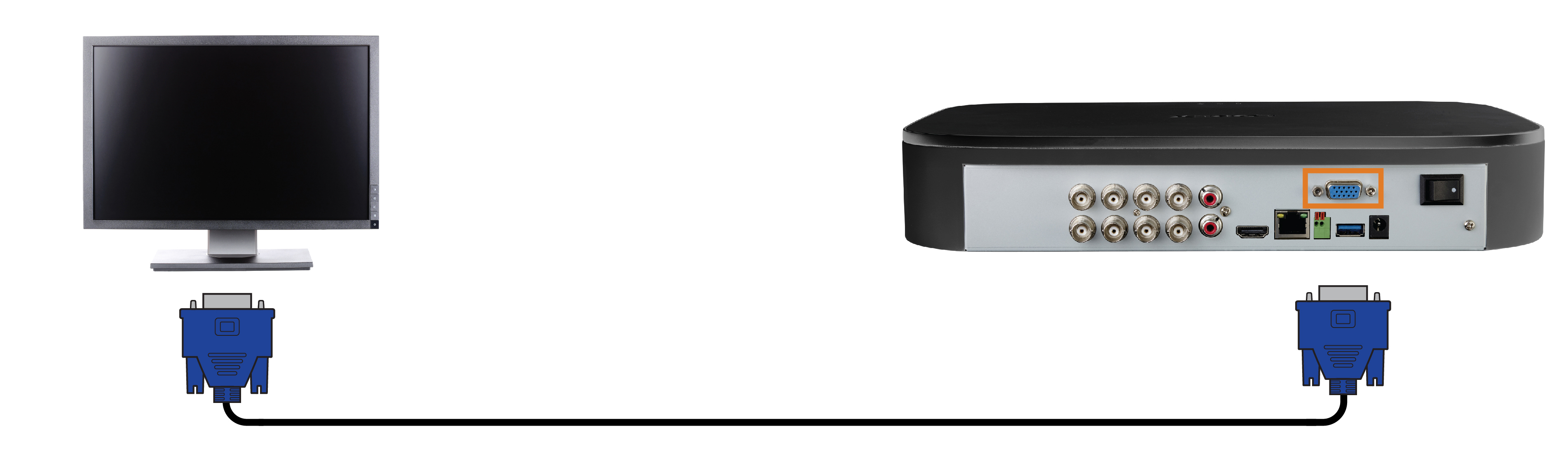

4.4 STEP 4: Connect monitor

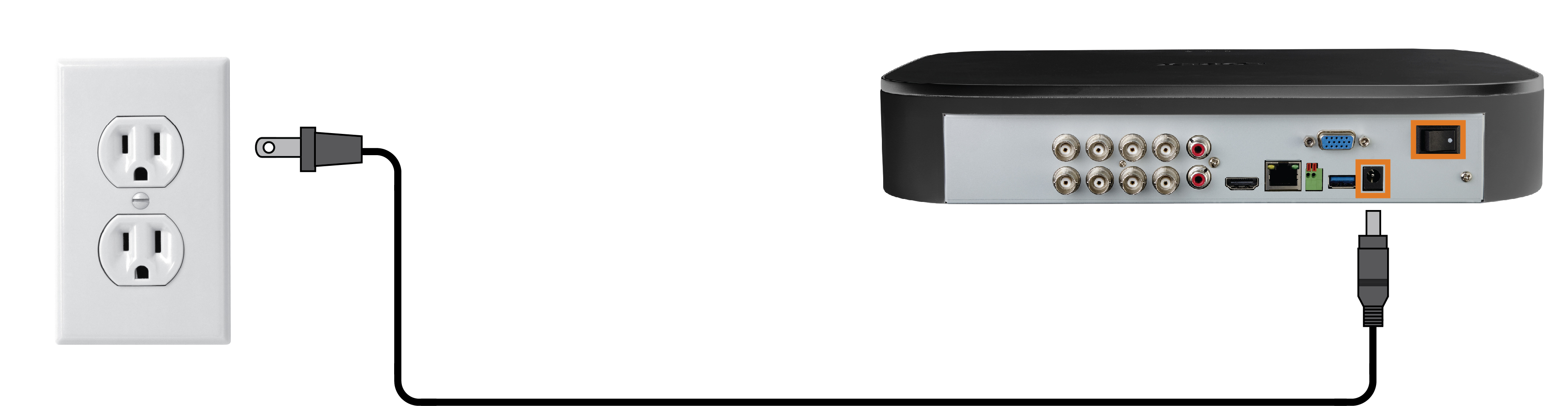

4.5 STEP 5: Connect power

Use the included power adapter to connect the recorder to a nearby outlet. Turn the recorder on using the power switch on the back panel.

4.6 STEP 6: Lorex Setup Wizard

When you first power up your recorder, the Lorex Setup Wizard will begin. The Wizard will help you configure core system settings and set up your cameras. It is recommended to review before choosing a permanent mounting position for your cameras.

You will also create a password that will be used to access the unit from now on. For future reference, it is recommended that you record your password in a secure location.

4.7 STEP 7: Upgrade Firmware to Latest Version (If Available)

If a firmware upgrade is available, you will be asked to install it once the system starts up. It is required to upgrade your system firmware and client software or mobile apps to the latest version to enable remote connection to the system.

If a firmware upgrade is available:

After startup, a notification will appear asking you to upgrade the firmware. Click OK to upgrade.

Enter the system user name (default: admin) and your secure password, then click OK. Wait for the firmware update to complete. The system will restart once the firmware has been upgraded.

4.8 Quick Access to System Information

Perform one of the following actions to bring up the system information window. This window contains vital system information including the model number, serial number, and device ID.

To quickly open a window that displays important system information:

From the Live View display, right-click to open the Quick Menu, then click Info.
OR

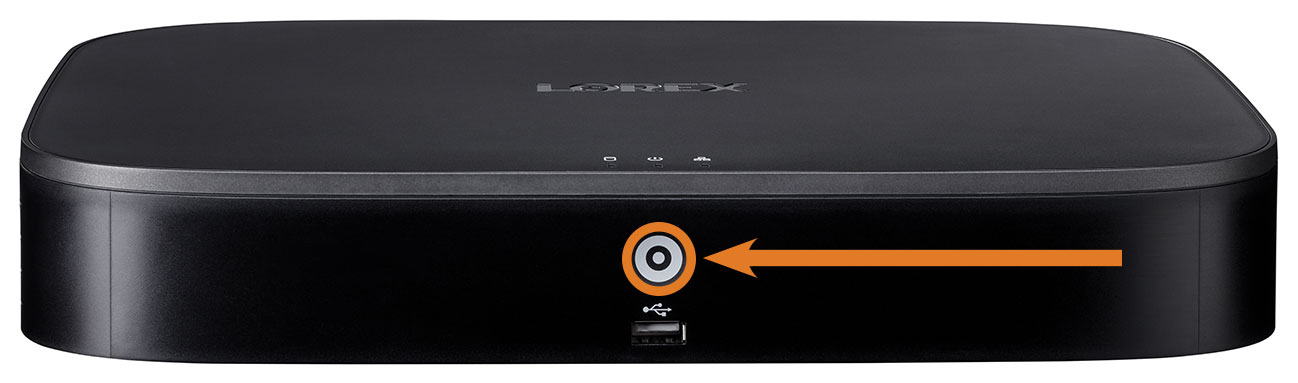

Press the front panel button on the recorder.

	Note
This step is for verification of the camera image only. It is recommended to connect cameras to a nearby power adapter for this step. The Lorex Setup Wizard that runs at startup will assist you in naming and organizing your cameras, so it is also recommended to leave cameras connected until the wizard asks you to install cameras in their permanent mounting location.

	Note
Before selecting a permanent mounting location for your cameras, see for important notes and installation tips. The extension cable must be a single stretch of cable between the recorder and camera. You cannot connect multiple extension cables to each other.

	CAUTION
The system will automatically match the resolution of the connected monitor the first time you use the recorder. If you need to switch monitors, make sure you set the recorder to an output resolution supported by the new monitor BEFORE switching. See 15.5.1 Setting the Recorder’s Output Resolution for details.

	Note
For detailed mounting instructions for your particular camera model, refer to your camera’s documentation on lorex.com .

	Note
You must connect your recorder to a router with Internet access in order to get automatic firmware upgrades.

	CAUTION
DO NOT POWER OFF THE SYSTEM OR DISCONNECT THE POWER CABLE DURING FIRMWARE INSTALLATION.

	Note
The QR code shown on this screen can be scanned during mobile setup to enter the system’s device ID.

	Note
Do not press and hold the button. The front panel button doubles as a panic button that activates warning lights and sirens for deterrence cameras if held for 3 seconds.
