3 DVR Overview
3.1 Front Panel
-
USB Port: Connect a USB mouse (included) or connect a USB flash drive (not included) for data backup or firmware upgrades.
-
HDD – LED Indicator: Glows to indicate hard drive is in normal state. Turns off when there is a hard drive error.
-
PWR – LED Indicator: Glows to indicate the system is on.

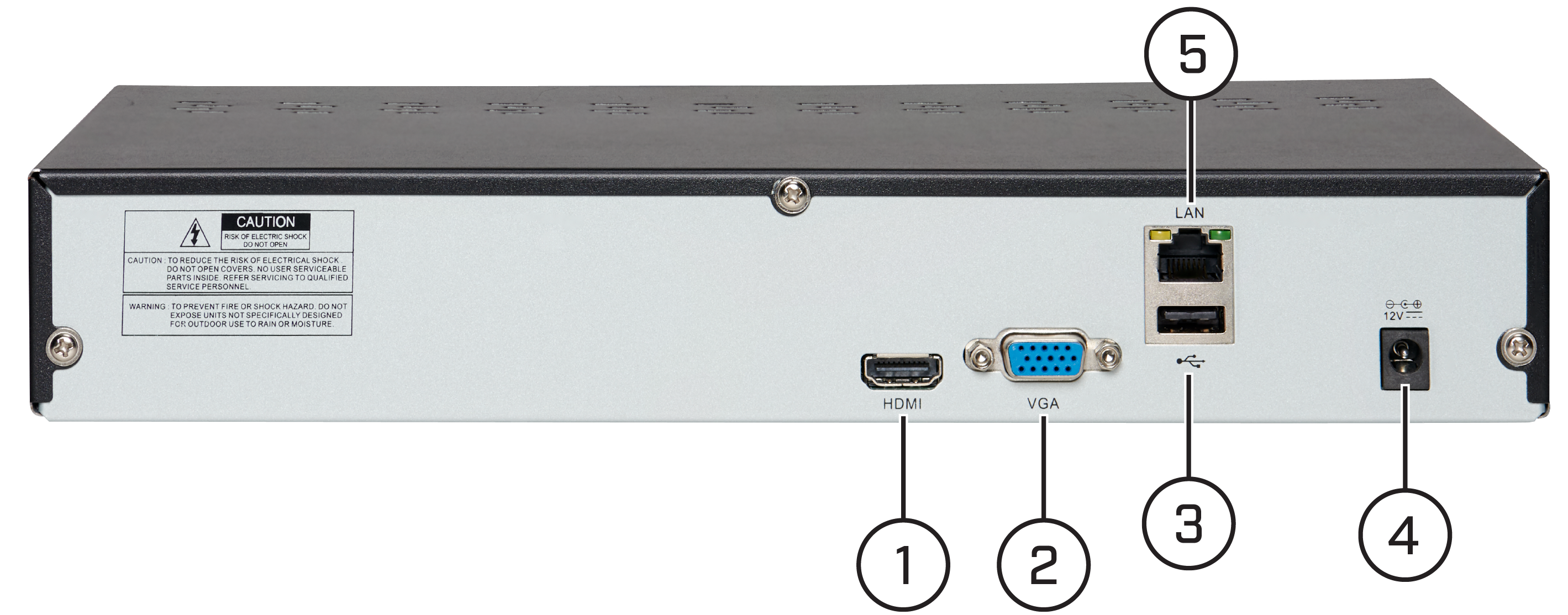

3.2 Back Panel
-
HDMI: Connect the included HDMI cable to view the system interface on an HDMI monitor or TV (1080p output supported).
-
VGA: Connect a VGA monitor (not included) to view the system interface.
-
USB: Connect the wireless receiver for your Wire-Free cameras. For a full list of compatible cameras, visit
lorex.com/compatibility
.
-
Power (12V): Connect the included 12V DC power adapter.
-
LAN: Connect the included Ethernet cable to a router or switch on your network for local and remote connectivity.
