9  Recording

By default, the system is set to immediately record video from all connected cameras in both continuous recording and motion recording modes.

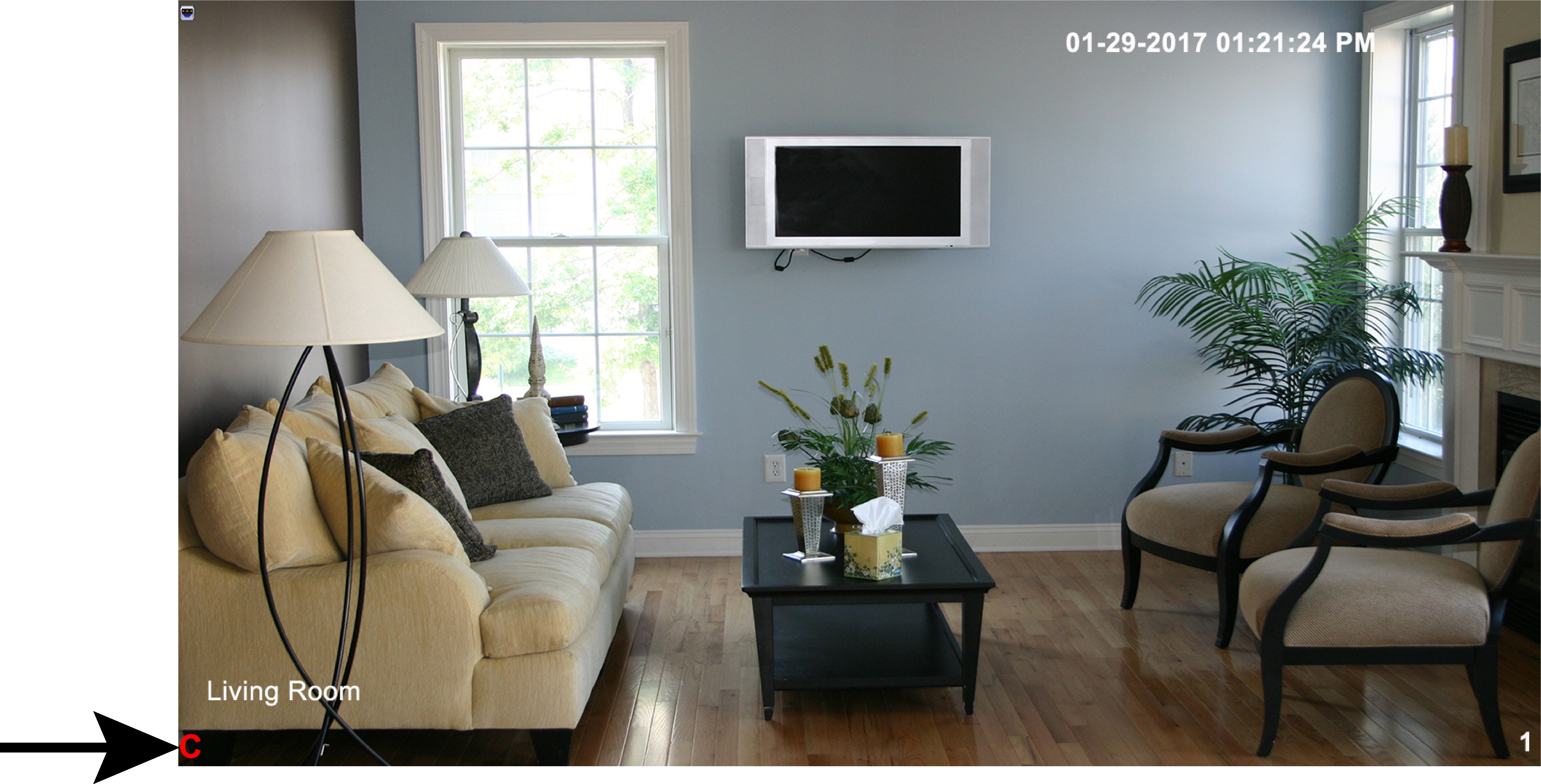

When a camera is recording video, the type of recording is indicated by icons in the bottom-left corner of the camera image.

9.1  Video Recording Types

The system supports the following recording types.
Graphic
You may see one of the following icons:
  • icon Continuous Recording: The system is recording video constantly. By default, the system is set to record continuously at all times.
  • icon Motion Recording: The system has detected motion and is recording the event.
  • icon Motion Detected — No Recording: The system detected motion, but motion recording is not enabled or a recording schedule has been set to disable motion recording during this time of day.

9.2  Main Stream and Sub Stream

The system employs two video recording streams, a Main Stream and a Sub Stream. Both Main Stream and Sub Stream recording are enabled by default. The Main Stream records high quality video to your system’s hard drive.
The Sub Stream records lower resolution video for efficient streaming to devices over the Internet. Sub Stream recording must be enabled to view video recordings on a computer or mobile device.
You can configure the video quality parameters for the Main Stream or Sub Stream. For details, see 13.1.6 Configuring Recording Quality .

9.3  Setting up Scheduled or Manual Recording

You can set the system to record based on a schedule or you can manually turn recording on and off.
To configure the recording schedule, see 13.3.14 Configuring the Video Recording Schedule .
To select between scheduled and manual recording:

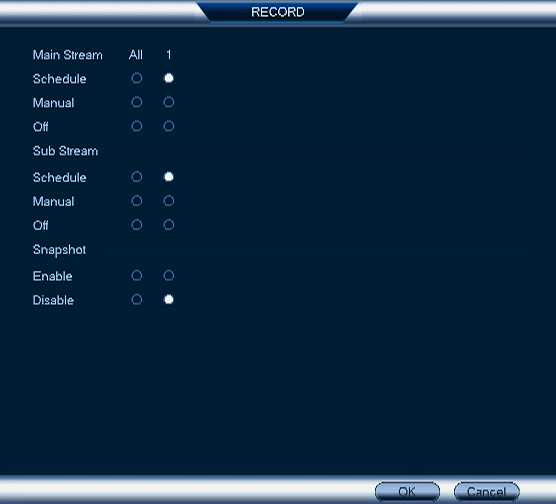

  1. During Live View, right-click and then select Manual Control > Record.
    Graphic
  2. Under Main Stream, select how the system will record the Main Stream for each channel.
    • Schedule: Main Stream recording will follow the recording schedule.
    • Manual: The system will record the Main Stream continuously as long as this option is checked.
    • Off: The system will not record the Main Stream for this channel. This option is not recommended.
  3. Under Sub Stream, select how the system will record the Sub Stream for each channel.
    • Schedule: Sub Stream recording will follow the recording schedule.
    • Manual: The system will record the Sub Stream continuously as long as this option is checked.
    • Off: The system will not record the Sub Stream for this channel.
  4. Under Snapshot, select Enable to enable snapshot recording on each channel. Or, select Disable to disable snapshot recording.
  5. Click OK to save changes.

9.4  Configuring Hard Drive Overwrite

By default, the hard drive in your unit is set to overwrite automatically, meaning that the system deletes the oldest footage when the hard drive is full to make way for new recordings. This is recommended, as it makes sure that your system will continue to record without any input from you. You can also set the system to stop recording once the hard drive is full.
To configure hard drive overwrite:

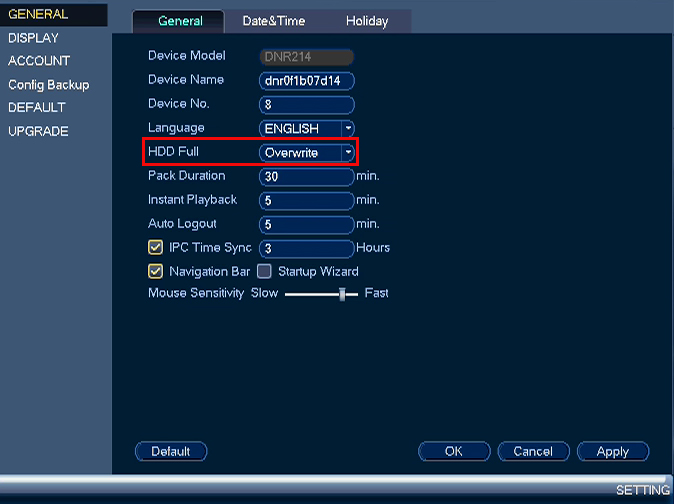

  1. Right-click and select Main Menu. Click icon > Setting > General > General.
  2. Under HDD Full, select Overwrite for the system to overwrite the oldest recordings when the hard drive is full. Or, select Stop Record for the system to stop recording when the hard drive is full.
    Graphic
  3. Click OK to save changes.
