5 Basic Setup
5.1 Step 1: Connect the Network Cameras
-

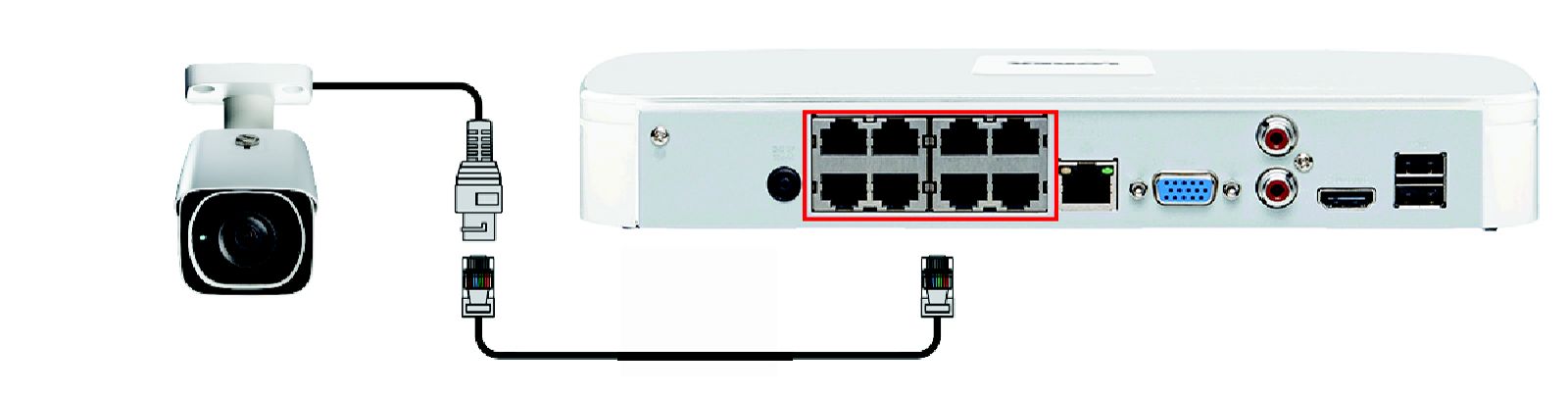

Connect network cameras to the PoE Ports on the rear panel of the NVR using Cat5e or higher grade Ethernet cable. The cameras will appear on the NVR without any additional configuration when the system starts up.
|
Note
|
|
5.2 Step 2: Connect the Mouse
-

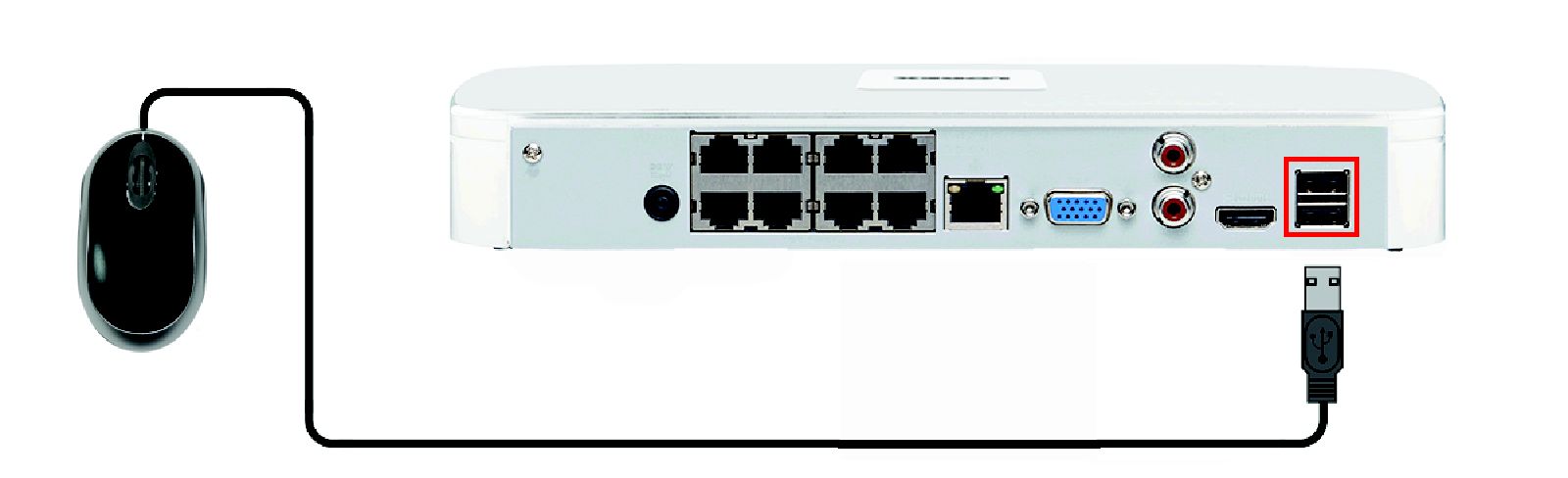

Connect the included USB mouse to one of the USB ports.
5.3 Step 3: Connect the Ethernet Cable
-
Connect the included Ethernet cable to the LAN port on the rear panel of the system. Connect the other end of the Ethernet cable to a router or switch on your network.
5.4 Step 4: Connect the Monitor
-
Connect the included HDMI cable to the HDMI port, then to a TV or monitor (recommended).
OR
-
Connect a VGA cable (not included) to the VGA port, then to a monitor.
5.5 Step 5: Connect to Power

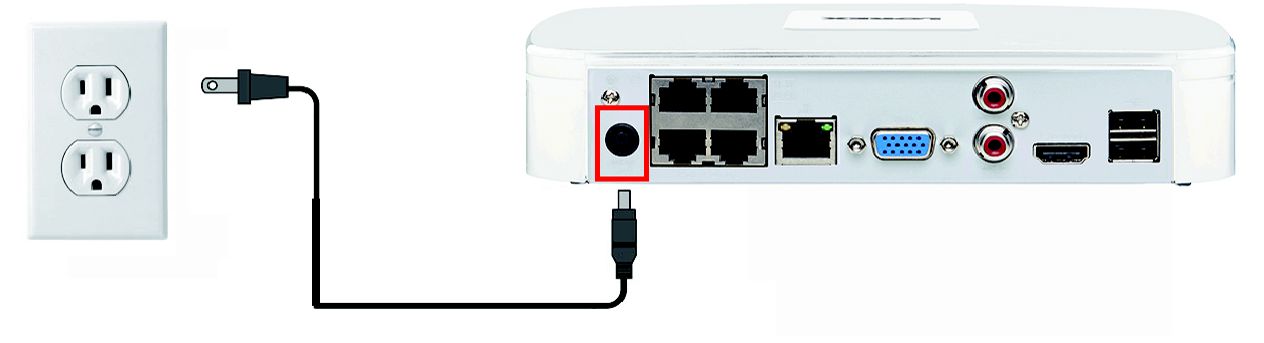

Connect the included power adapter to the NVR and connect the other end to a wall socket or surge protector.
At startup, the system performs a basic system check and runs an initial loading sequence. After a few moments, the system
loads a live display view.
5.6 STEP 6: Create a Secure Password
The first time you power up your system, you will be asked to create a new 6 character password.
-
Enter the system user name (default: admin) and password (default: 000000).
-
You will be asked to create a new 6 character password. Enter your new password in the New Password and Confirm Password fields, then press OK to confirm.
|
Note
|
Your new password will be used to access the system from now on.
|
5.7 Step 7: Upgrade Firmware to Latest Version (if Available)
If a firmware upgrade is available, you will be asked to install it once the NVR starts up. It is required to upgrade your system firmware and client software / mobile apps to the latest version to enable
remote connection to the system.
If a firmware upgrade is available:
-
After startup, a notification will appear asking you to upgrade the firmware. Click OK to upgrade.
-
Enter the system user name (default: admin) and your new, secure password.
-
Click OK. Wait for the firmware update to complete. The system will restart once the firmware has been upgraded.
|
WARNING
|
DO NOT POWER OFF THE NVR OR DISCONNECT THE POWER ADAPTER DURING FIRMWARE INSTALLATION
|
5.8 Step 8: Verify Camera Image
-
Power on the cameras, and then verify the camera video quality before mounting the cameras to a permanent location.
-
Mount the cameras under a sheltered location. Always verify the outdoor rating of your camera before installing it in a permanent
location.
|
CAUTION
|
Cameras differ in terms of installation or mounting instructions. Please see the documentation that came with your camera(s)
for specific installation instructions.
|
5.8.1 Camera Installation Tips
-
Mount the camera where the lens is away from direct and intense sunlight.
-
Plan your cable wiring so that it does not interfere with power lines or telephone lines.
-
Ensure that the camera wiring is not exposed or easily cut.
-
Mount the camera in an area that is visible, but out of reach.
-
Avoid pointing the camera at a glass window to see outside, as this may result in a poor image caused by glare from indoor
/ outdoor lighting conditions.
-
Adjust the camera angle so that it covers an area with high traffic.
-
In "high-risk" locations, have multiple cameras point in the same area. This provides camera redundancy if a vandal attempts
to damage the camera.
5.9 Step 9: Set the Time
-
Set the system time and date for accurate video time stamps. Videos with inaccurate times may not be valid as surveillance
evidence.
-
For details on setting the system time, see
8 Setting The Time
.
5.10 Quick Access to System Information
|
Note
|

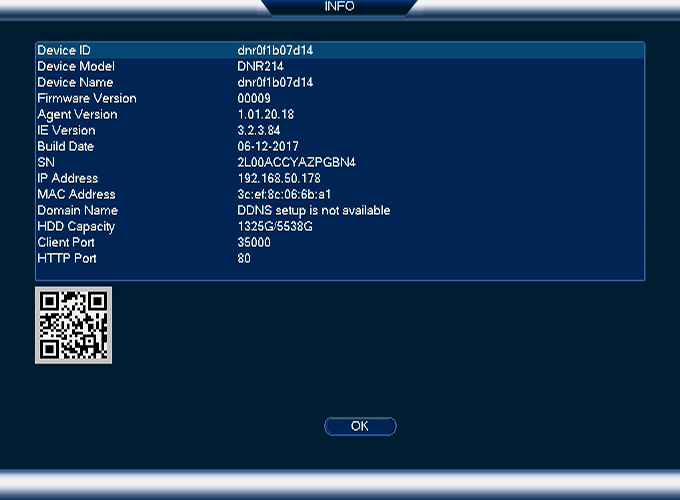

The QR code shown in the System Info screen can be scanned during mobile setup to enter the system’s Device ID.
|
5.11 Default System Password & Port Numbers
By default, the system user name is
admin
and the password is
000000
.
|
Note
|
The system requires a user name and password to log in to the system remotely using a computer or mobile device. Enter the
system user name (default:
admin
) and your secure password you set during system start up.
|
5.12 Connect to Your NVR Over the Internet
This system features FLIR Cloud Services. This is a cloud service that allows you to connect with your system over the Internet
via a secure handshake with FLIR servers. This means you can easily connect to your system without requiring any port forwarding
or other network configuration.
5.13 Connecting Cameras to the Local Area Network (LAN)

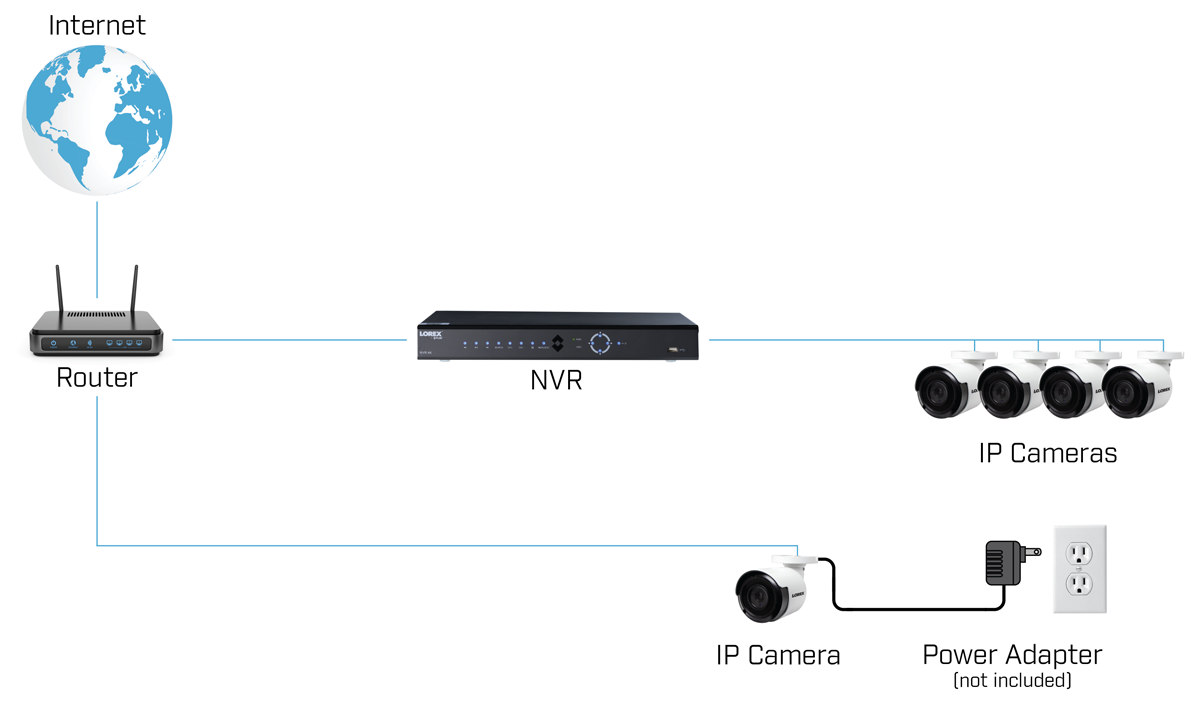

For flexibility, you may also connect network cameras to the same Local Area Network (LAN) as the NVR. This is accomplished by connecting the cameras to the same router as the NVR.
For these installations, an external PoE switch (sold separately) or power adapter (sold separately) must be used to provide
power to each network camera. You also must add the cameras on the NVR before they will show a picture on the monitor or be recorded by the NVR.
Follow the steps below to connect the cameras to the NVR over the LAN.
|
Note
|
Camera and NVR images in this section are used for illustration only.
|
-

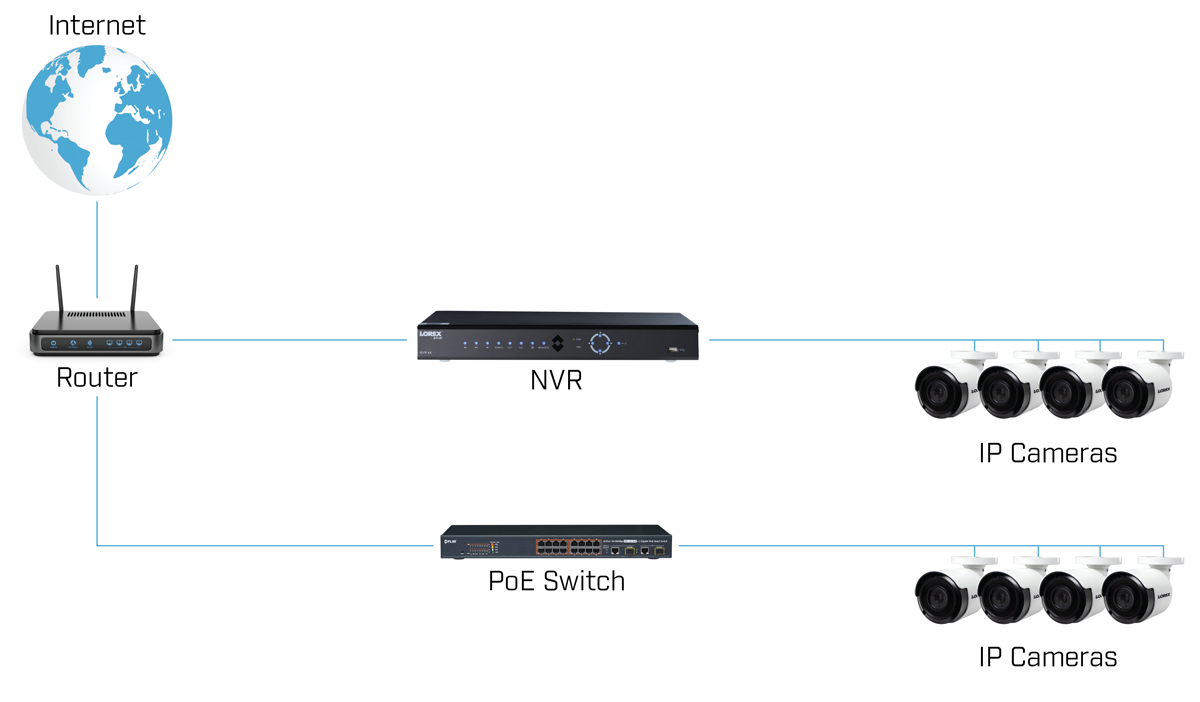

Connect an Ethernet cable from the LAN port on an external PoE switch to your router using a CAT5e or higher Ethernet cable.
Connect the power cable to the PoE swtich and to a power outlet or surge protector.
|
Note
|
Terminology may vary depending on the model of PoE switch you have.
|
-
Connect the network cameras to the PoE switch using the Ethernet extension cables. The PoE switch will provide power and video
transmission the same way as your NVR.
-
Connect each camera to a compatible power adapter.
-
Connect the camera to your router using a CAT5e or higher Ethernet cable.
Step 2 of 2: Add Cameras to your NVR:
-
From Live View, right-click and select Device Search .
-
Log in using the admin account (Default user name:
admin
and your secure password).
-

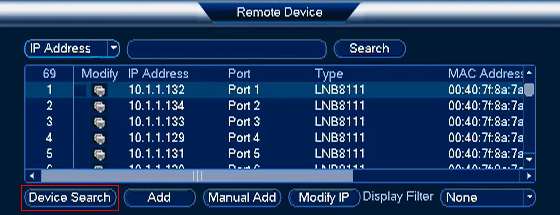

Click Device Search. The system searches the network for compatible cameras.
-

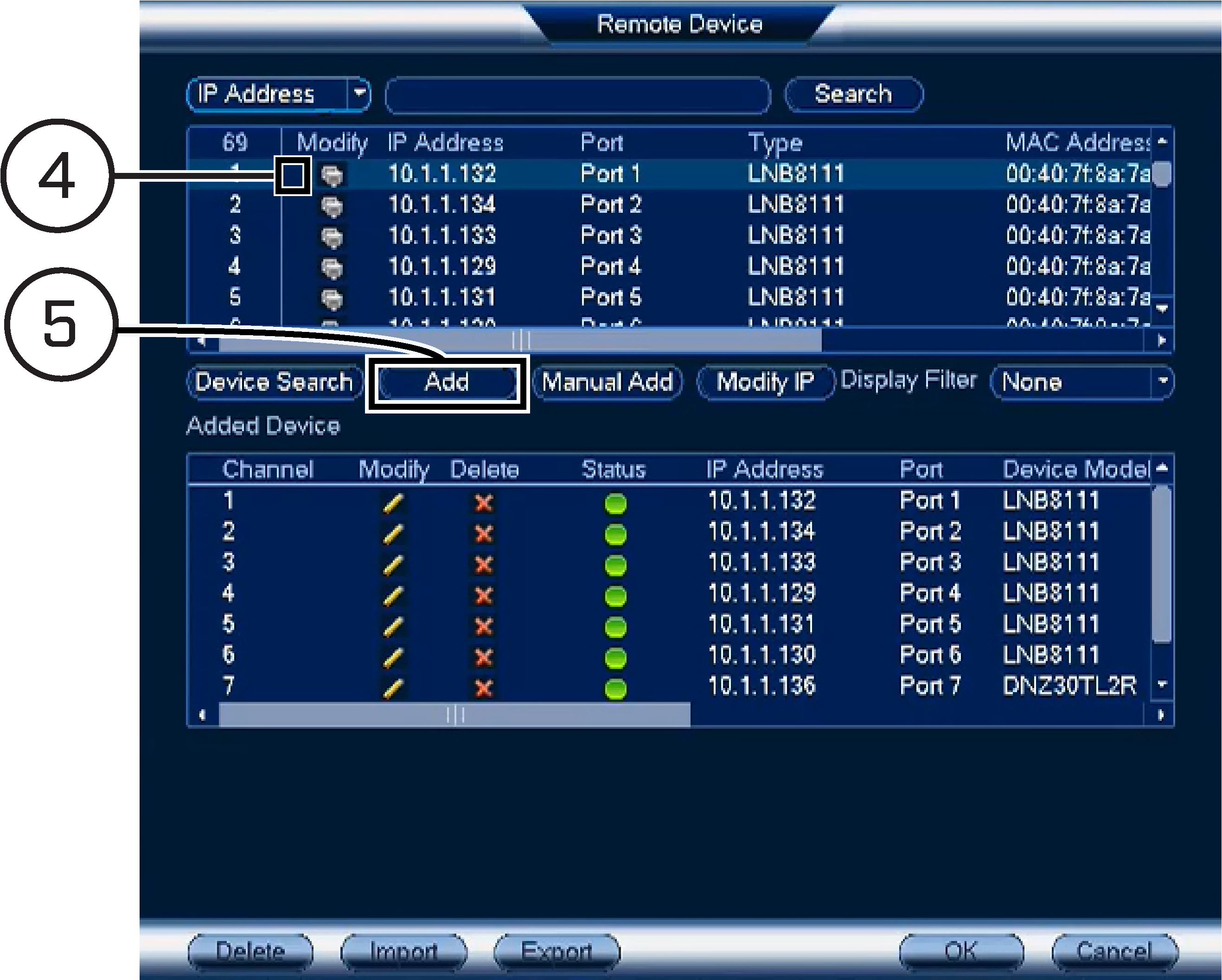

Check the camera (s) you would like to add.
-
Click Add. The status indicator turns green to show the camera is successfully connected.
|
Note
|
If the status indicator is red, click
. Update the camera user name, password, ports, and manufacturer as needed.
|
-
Click OK to save changes.
|
Note
|
You can also add a camera to a specific channel by hovering the mouse over an empty channel in split-screen view and clicking
. Click Device Search and double-click the camera you would like to add. Right click to exit.
|
