8  Using Playback Mode

You can access recorded video on your system using the Lorex Cloud app. You must enable Sub Stream recording to use playback mode on mobile devices. For more information, see 5.2.2 Configuring the Substream .
    To use Playback Mode:
  1. Tap icon to access the menu, and then tap Playback.
  2. Tap + to playback a single channel, or tap icon to playback multiple channels.
    Graphic
  3. Configure the following:
    Graphic
    1. Select the date, and then the start / end times to playback.
    2. Select the Record Type from the list.
    3. Select the channel(s) to playback.
    4. Tap Start Playback.
  4. Use the on-screen controls to control playback.

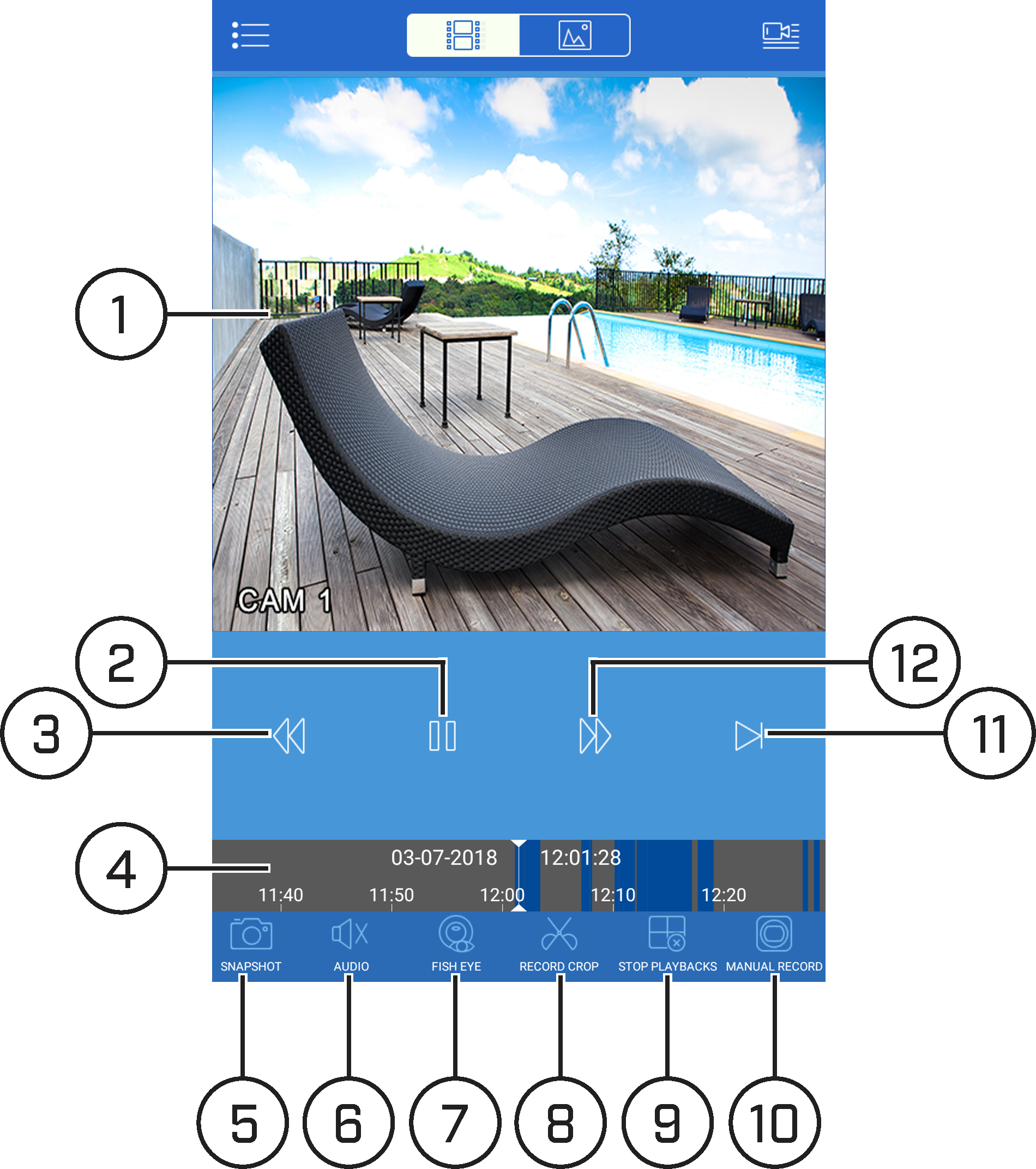

    Playback Controls
    Graphic
    1. Display Area: Double-tap to open in full-screen.
    2. Play / pause: Press to play / pause the recording.
    3. Slow: Play the recording slower.
    4. Time Bar: Shows the length of the recording. Swipe left or right to select the time you wish to view.
    5. Snapshot: Tap to take a snapshot from the selected camera. For information about viewing snapshots with Local Files, see 7 Viewing Snapshots and Videos .
    6. Audio: Tap to mute / un-mute audio coming from the camera (audio-enabled cameras only; must have self-powered microphone connected to the camera).
    7. Fisheye: Fisheye cameras only — During playback mode, tap the Fish Eye icon. Use the display area to pan around the Fisheye image.
    8. Record Crop: The Record crop feature allows you to select a duration of video during playback mode and save it. During playback mode, tap Record Crop. Click icon to mark the beginning of the video clip. Click icon to mark the end of the video clip. For information about viewing saved videos with Local Files, see 7 Viewing Snapshots and Videos .
    9. Stop Playbacks: Stop playback on all channels.
    10. Manual Record: Tap to start / stop manual recording. For information about viewing saved videos with Local Files, see 7 Viewing Snapshots and Videos .
    11. Next frame: Skip to the next frame of the recording.
    12. Fast: Play the recording faster.
