11  Search & Backup

You can back up video recordings and snapshots to a USB flash drive (not included) connected to the NVR.

11.1  Formatting the USB Flash Drive

It is recommended to format your USB flash drive (not included) before using it with the system.
    To format a USB device:
  1. Insert a USB flash drive (not included) into one of the USB ports.
  2. From Live View, right-click and then select Main Menu. If prompted, enter the system user name (default: admin ) and your secure password.
  3. Click icon > Backup.

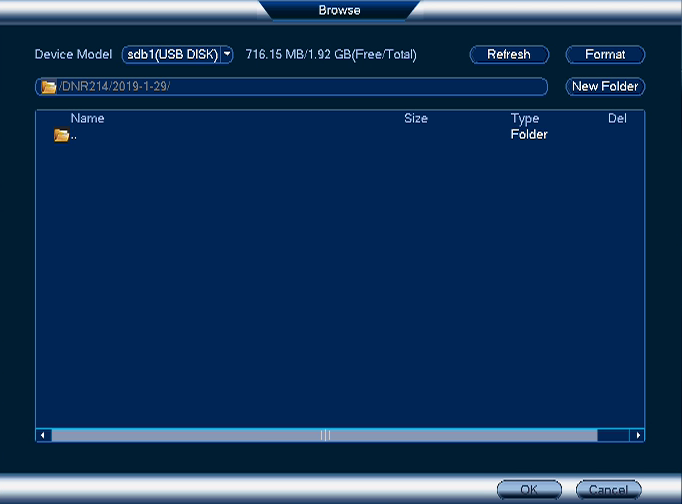

  4. With your USB device selected, click Browse.
    Graphic
  5. Click Format.
    Graphic

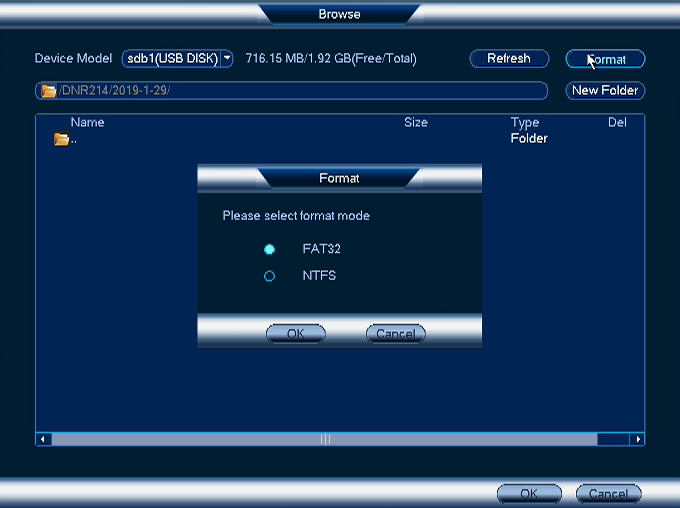

  6. Select a format mode.
    Graphic
  7. Click OK to confirm.

11.2  Backing up Video

  1. Insert a USB flash drive (not included) into one of the USB ports.
  2. From Live View, right-click and then select Main Menu. If prompted, enter the system user name (default: admin ) and your secure password.
  3. Click icon > Backup.

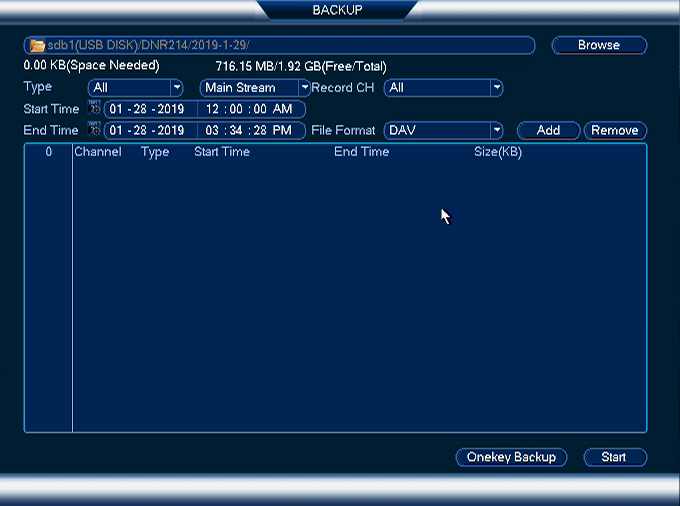

  4. Configure your search options:
    Graphic
    • Your USB device will be listed in the field next to the Browse button.
    • Type: Select the recording type you would like to search for or select All to search all recording types. Also, select the video stream.
    • Record CH: Select the channel you would like to search or select All to search all channels.
    • File Format: Select DAV to save files in .dav format. You can playback .dav files using the Lorex video player software from www.lorextechnology.com . Or, select ASF for .asf format. You can playback .asf files in VLC Media Player (free download from ) on PC or Mac.
    • Start Time / End Time: Select the start and end time for your search.
  5. Click Add. A list of files that match your search criteria appears.
  6. Check files you would like to backup, and then click Start. Wait for the backup to complete.

11.3  Using Video Clip Backup

Video clip backup allows you to select a duration of video during playback mode and save it to a USB device (not included).
    To use Video Clip Backup:
  1. Insert a USB flash drive (not included) or USB external hard drive (not included) into one of the USB ports.
  2. Start playing back video using the steps in 10.1 Using Playback .
  3. Click icon to mark the beginning of the video clip. Click icon again to mark the end of the video clip.
  4. Click icon to open the Backup menu.

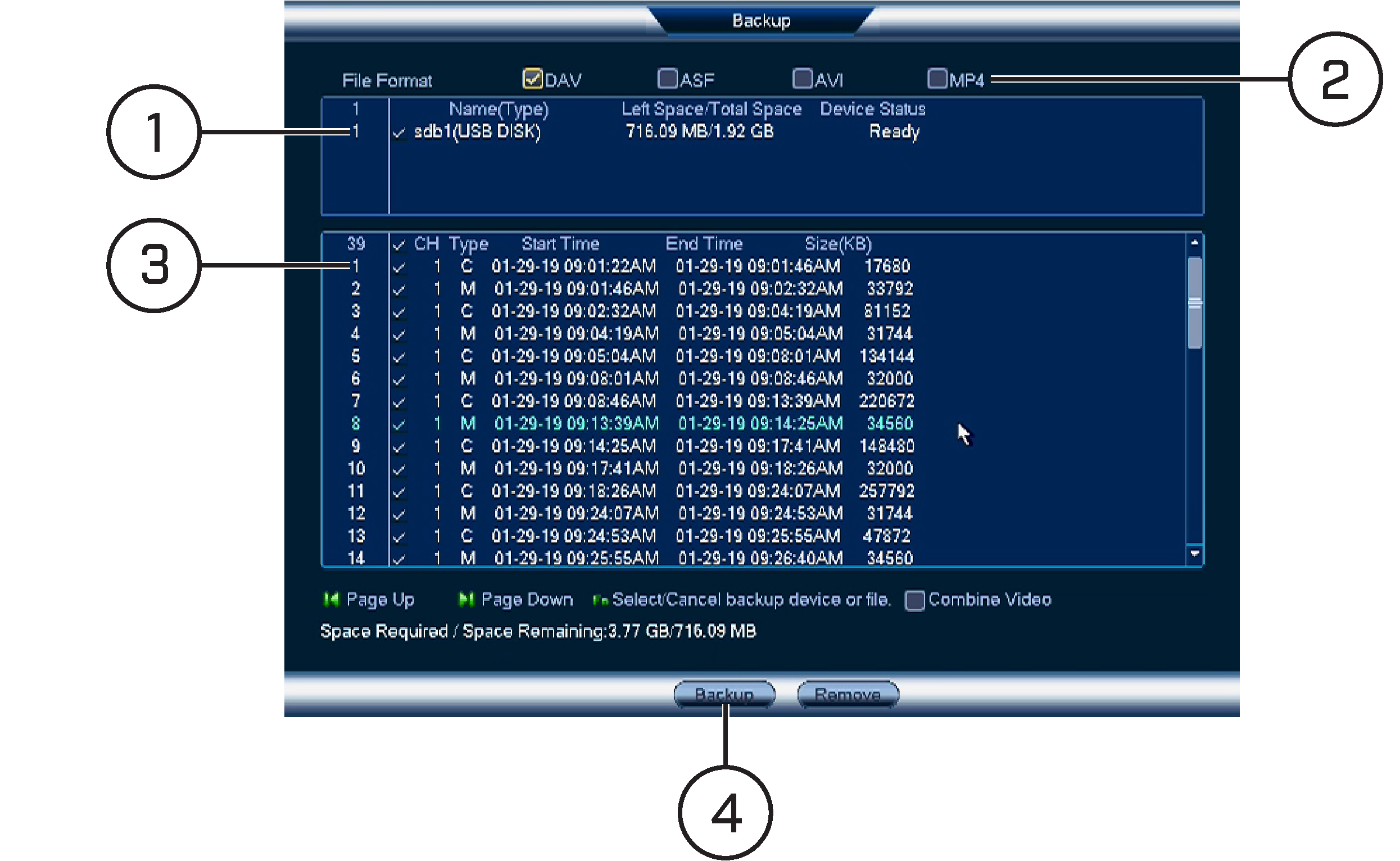

  5. Configure the following:
    Graphic
    1. Check the USB device where you would like to save the file.
    2. Check a file format.
    3. Check the files you would like to backup.
    4. Click Backup. Then click Start. Wait for the backup to complete before removing the USB flash drive.

11.4  Viewing Backup Files

To playback .dav backup video files, a FLIR Cloud™ Player is available for PC and Mac at www.lorextechnology.com .

11.4.1  Viewing Backup Files on PC

You need a video player to play back .dav backup video files. To find the video player visit www.lorextechnology.com , search for the model number of your product, click on your product in the search results, and click on the Downloads tab.
    To view backup video files using the Player on PC:
  1. Download and install the Video Player for PC from www.lorextechnology.com .

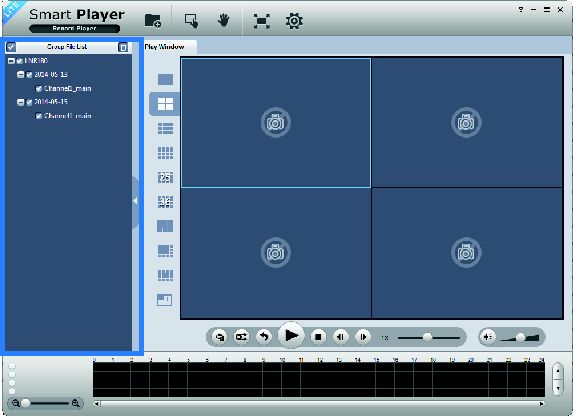

  2. Click icon to open a back up video file.
    Graphic
  3. Use the Player controls to control playback or select other files for playback.

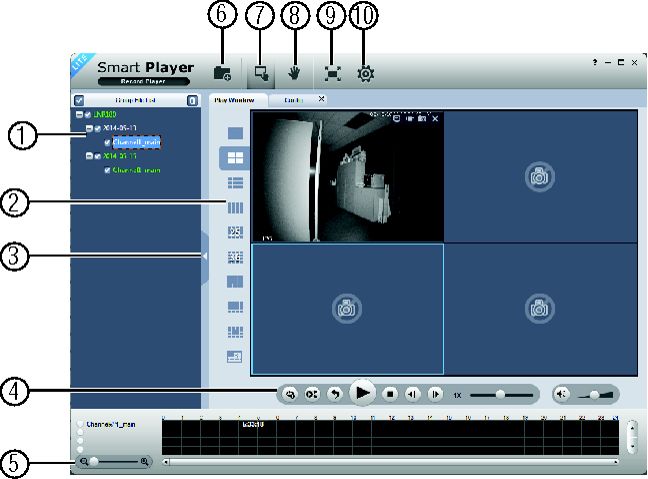

Video Player Controls
Graphic
  1. File List: Double-click to open a file.
  2. Display Area: Select the split-screen mode. Double-click a video file to expand. Click the controls inside the display area to do the following:
    • icon : View information about the video file.
    • icon : Start/stop a manual recording from the video file.
    • icon : Take a snapshot from the video file.
    • icon : Close the video file.
  3. Hide/show file list.
  4. Playback controls:
    • icon : Playback files in sequence.
    • icon : Synchronize playback times.
    • icon : Play/pause playback.
    • icon : Stop playback.
    • icon : Previous frame.
    • icon : Next frame.
    • icon : Playback speed.
    • icon : Volume control.
  5. Zoom Timeline.
  6. Add Files: Click to open back up video files.
  7. Digital Zoom: Click to activate digital zoom mode. Click and drag in the video to zoom in. Right-click to unzoom.
  8. Drag: When digital zoom is activated, click to activate drag mode. Then click and drag in the video to view different areas of the image.
  9. Full-screen: Click to open the player in full screen. Press ESC to exit full screen.

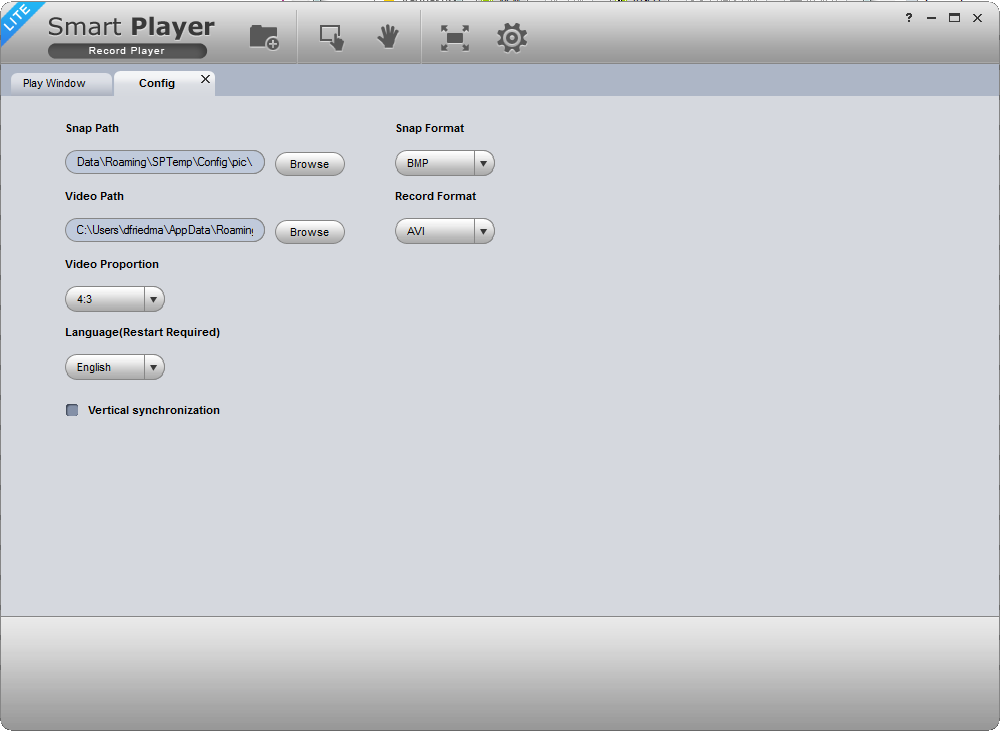

  10. Config: Click to open the configuration menu for the player. From here you can control the default file formats and save locations for snapshots and video files saved from the player.
    Graphic

11.4.2  Viewing Backup Files on Mac

You need a video player to play back .dav backup video files. To find the video player visit www.lorextechnology.com , search for the model number of your product, click on your product in the search results, and click on the Downloads tab.
To view backup video files using the Player on Mac:
  1. Download Video Player for Mac from www.lorextechnology.com .

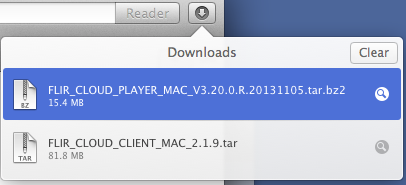

  2. Double click the downloaded file in Safari to extract the Smart Player app file.
    Graphic
  3. Drag the Smart Player app to your Desktop or Applications list. Double click Smart Player (icon ) to open it.

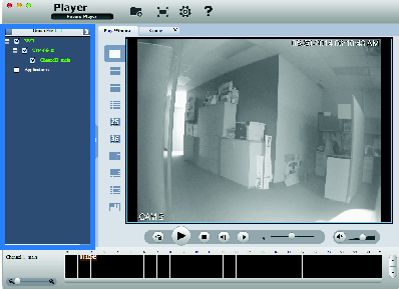

  4. Click icon to open a back up video file in another location.
    Graphic
  5. Use the Player controls to control playback or select other files for playback.

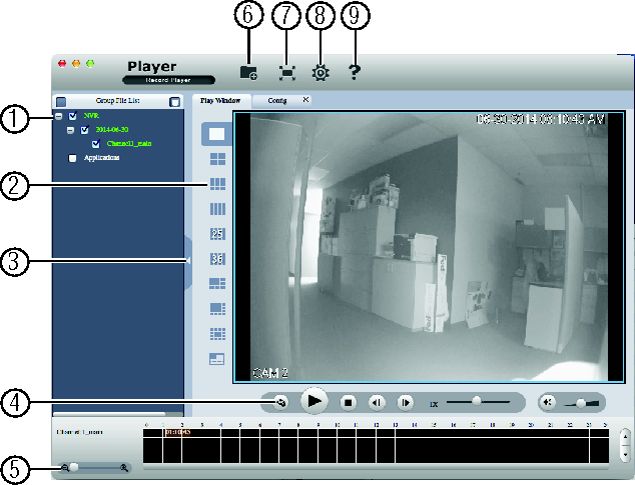

Video Player Controls
Graphic
  1. File List: Double-click to open a file.
  2. Display Area: Select the split-screen mode. Double-click a video file to expand. Click the controls inside the display area to do the following:
    • icon : View information about the video file.
    • icon : Take a snapshot from the video file.
    • icon : Close the video file.
  3. Hide/show file list.
  4. Playback controls:
    • icon : When a video file ends, this button lets you select if you want the video player to repeat the same file or play the next file.
    • icon : Play/pause playback.
    • icon : Stop playback.
    • icon : Previous file.
    • icon : Next file.
    • icon : Playback speed.
    • icon : Volume control.
  5. Zoom Timeline.
  6. Add Files: Click to open back up video files.
  7. Full-screen: Click to open the player in full screen. Press ESC to exit full screen.

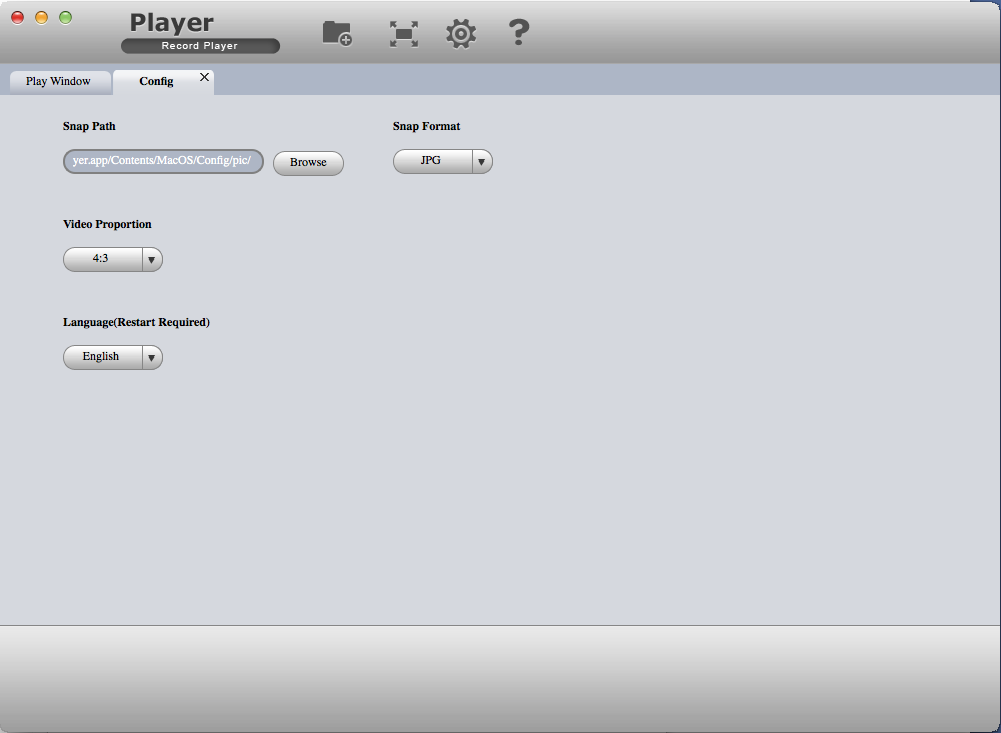

  8. Config: Click to open the configuration menu for the player. From here you can control the default file formats and save locations for snapshots and control the aspect ratio.
    Graphic
  9. About: Click to see version information for the Player software.
